EX-CSB1
EX-CommandStation/Booster 1 Express¶

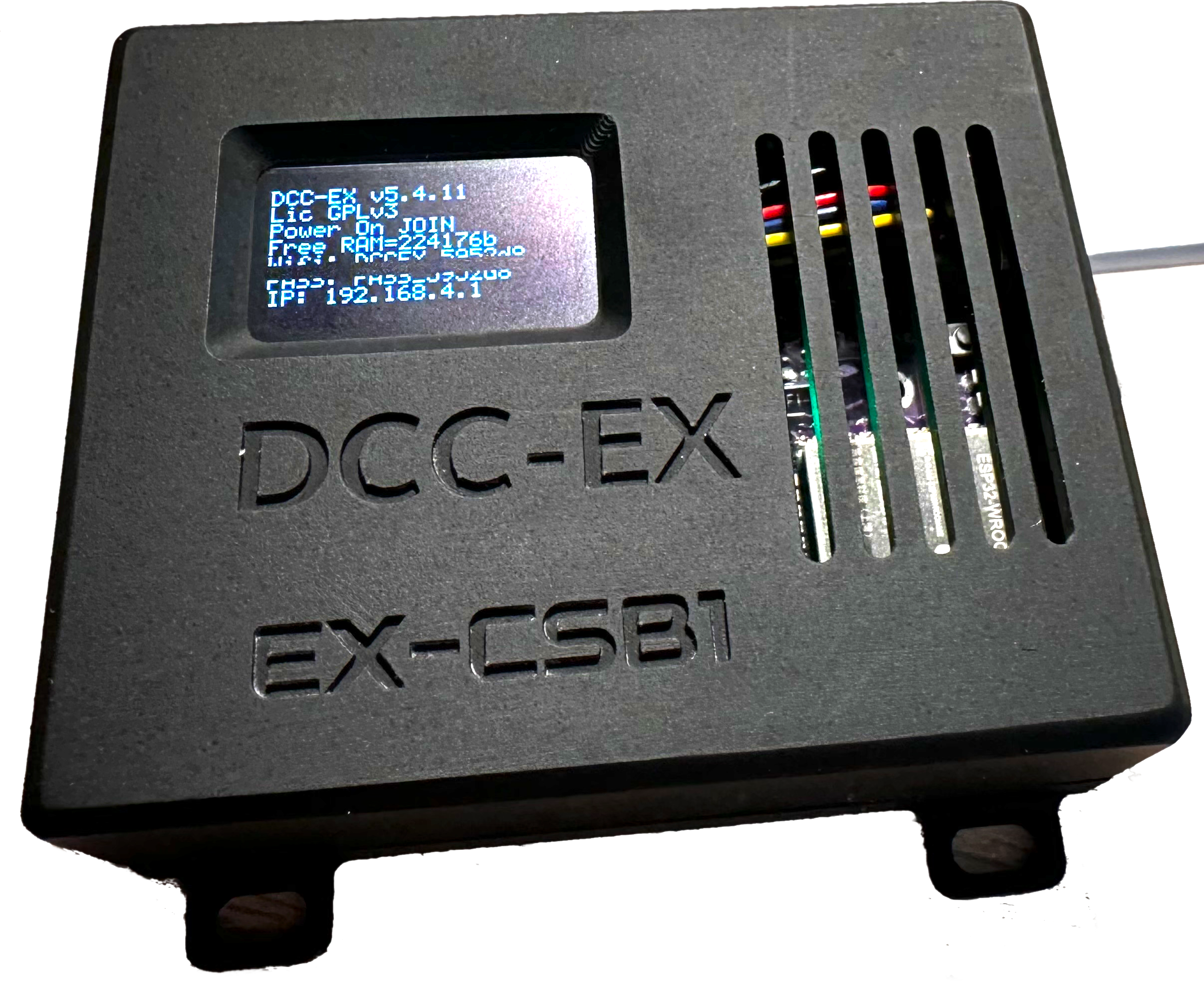

The EX-CommandStation/Booster 1 Express (EX-CSB1) is our flagship, WiFi enabled, ready-to-run system and is available for purchase now.
With your phone, you could be running your trains in less than 5 minutes. No computer required.
Features¶
The DCC-EX EX-CommandStation/Booster 1 (EX-CSB1) comes ready to use out of the box and has the following features:
- All the features of our EX-CommandStation Software
- Dual DCC/PWM DC outputs with up to 5A capacity – easily expandable to 4 outputs
- Wi-Fi built-in – fast 802.11n capable, with Access Point and Station modes including support for connecting as many as 10 Wi-Fi throttles (you can also connect to JMRI via Wi-Fi, but a USB cable is often better)
- Single power supply for track and onboard electronics – 12-25V DC with polarity protection
- USB-C connector – for software upload, diagnostic monitoring, DCC-EX EX-WebThrottle and JMRI connectivity
- Railsync DCC input – enables Booster or Sniffer modes, which with an EXRAIL script can be automatically engaged on receipt of a signal
- OLED screen – for diagnostics, status and information display
- When configured correctly, connecting a Railsync or DCC signal to the Railsync connector can enable your EX-CSB1 to operate as a DCC booster.
- When configured correctly, any output can be used as a DCC Auto Reverser
Purchasing¶
To purchase your own EX-CommandStation/Booster 1 Express (EX-CSB1) see our Official Suppliers page.
